100GHZ SPACING GAUSSIAN AAWG I-T MULTIPLEXER / DEMULTIPLEXER
Description:

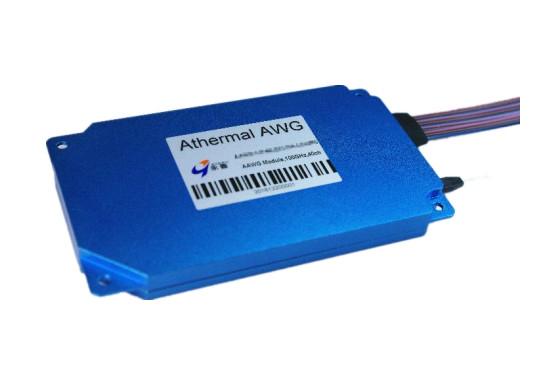

4.0dB AWG Multiplexer 44CH WDM In Optical Fiber Communication
ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
Specification:
| Parameter |
Units |
Value |
| Channels |
|
40/44/48 |
| Channel Spacing |
GHz |
100 |
| Reference Passband |
GHz |
±12.5 |
| Wavelength Accuracy |
pm |
±50 |
| Insertion Loss1 |
Typ. |
dB |
4.0 |
| Max. |
4.5 |
| Insertion Loss Uniformity |
dB |
≤1.5 |
| Polarization Dependent Loss (PDL) |
dB |
≤0.5 |
| 1dB Bandwidth |
nm |
≥0.2 |
| 3dB Bandwidth |
nm |
≥0.4 |
| Adjacent Channel Isolation |
dB |
≥25 |
| Non-Adjacent Channel Isolation |
dB |
≥30 |
| Total Crosstalk |
dB |
≥22 |
| Return Loss |
dB |
≥40 |
| Chromatic Dispersion(CD) |
ps/nm |
-20 ~ +20 |
| Polarization Mode Dispersion(PMD) |
ps |
≤0.5 |
| Operating Temperature |
℃ |
-40 to +85 |
| Storage Temperature |
℃ |
-40 to +85 |
Note: 1. Tested with connectors.
Ordering Information:
| Athermal AWG |
Spacing |
Type |
Ch Number |
Started Ch |
Fiber Length |
Connector |
Application |
Package |
| Common |
Ribbon |
Fan-out |
| AAWG |
1=100GHz |
F=Flat-Top |
16=16ch |
C21=C21 |
00=Adaptor |
1=None |
M=Mux |
M=Module |
| |
G=Gaussian |
32=32ch |
C215=C21.5 |
05=0.5m 05=0.5m 05=0.5m |
2=FC/UPC |
D=Demux |
R=Rack |
| |
|
40=40ch |
…… |
10=1.0m 10=1.0m 10=1.0m |
3=FC/APC |
MD=Mux & Demux |
| |
|
44=44ch |
|
15=1.5m 15=1.5m 15=1.5m |
4=LC/UPC |
|
|
| |
|
48=48ch |
|
20=2.0m 20=2.0m 20=2.0m |
5=LC/APC |
|
|
| |
|
…… |
|
…… |
6=SC/UPC |
|
|
| |
|
|
|
|
7=SC/APC |
|
|
| |
|
|
|
|
X=Special |
|
|
Features:
1. Athermal Design Over Operating Temperature Range
2. Compact Size
3. High Stability and Reliability
4. Low Insertion Loss, High Isolation
Applications:
1. WDM Transmission
2. Metro and Long-haul Network
